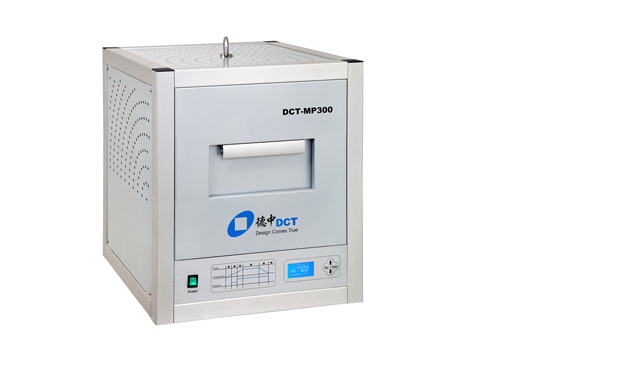

MP Series Multilayer Press
DCT MP series high performance multilayer press was designed for PCB labs to enable quick prototyping of multilayer PCBs according to industry standards. This was designed for high precision, varieties of multi-layer PCB. MP multilayer press is also suit for high frequency substrate with high pressure temperature, LCP and other materials, also suitable for thermoplastic, thermosetting materials such as welding resistance film, graphite, etc. it is a perfect solution for single or small batch production in the laboratory.
Features
wide adaptability and high flexibility
High adjustable system
Efficient and easy to use
Precise time matching
High performance and quality
Product parameters
Technical data | MP300 | MP300D |
Max. wiring area | 285mm x 205mm | 305mm x 230mm |
Borad size | 305mm x 230mm | 355mm x 280mm |
Pressure | 300N/cm2 | 300N/cm2 |
Max. Temperature | 250℃ | 250℃ |
Max. layer at one time | 2 | 6 |
Max. layer | 8 | 8 |
Pressing time | Approx.90min. | Approx.90min. |
Automatic hydraulic device | Standard | Standard |
Suitable substrate materials | FR4、PTFE、LCP、Graphite etc. | FR4、PTFE、LCP、Graphite etc. |
Technical data | MP300 | MP300D |
Power requirement | 220V/50Hz, 2.1kW | 220V/50Hz, 3kW |
Dimension (W x H x D) | 550 x 550 x 700mm | 600 x 600 x 1,330mm |
Weight | 180kg** | 450kg** |
